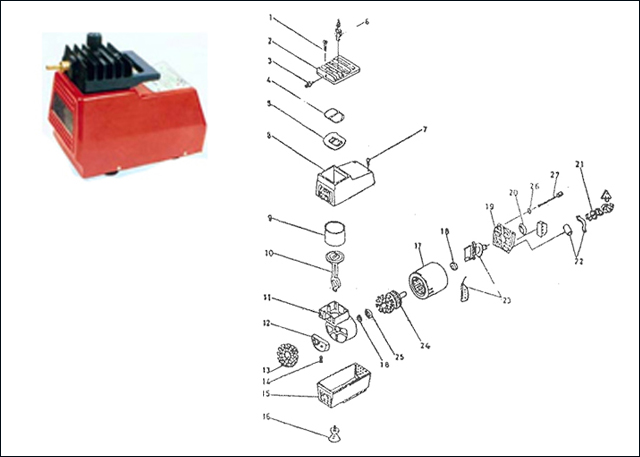

Piston Type Oil Free Compressor Cum Vacuum Pump Model : HS/ WP 01

PART NO. DESCRIPTION
101 HEAD SCREWS
102 HEAD ASSLY
102A AIR SUCTION FILTER
103 HOSE CONNECTOR
104 O RING FOR HEAD
105 VALVE PLATE ASSLY
105A FLAPPER VALVE
105A VALVE PLATE O RING
106 INLET NOZZLE
108 FIBRE BODY
109 PISTON SLEEVE
110 CONNECTING ROD ASSLY
110A TEFLON RING
111 MAIN BODY / FRONT COVER
112 ECCENTRIC CAM
113 FAN ASSLY
116 SUCTION CUP
117 STATOR ASSLY
117A STATOR REWINDING
118 BALL BEARING
119 BACK COVER
119A BEARING COVER
120 MOULDED CORD WITH PLUG
121 CAPACITOR & HOLDER
122 TERMINAL BOARD SWITCH
123 ROTOR, SWITCH, FAN ASSLY
123A SHAFT FOR ROTOR
123B SHAFT FOR ROTOR WITH CLUTCH
127 SCREW END CAP
