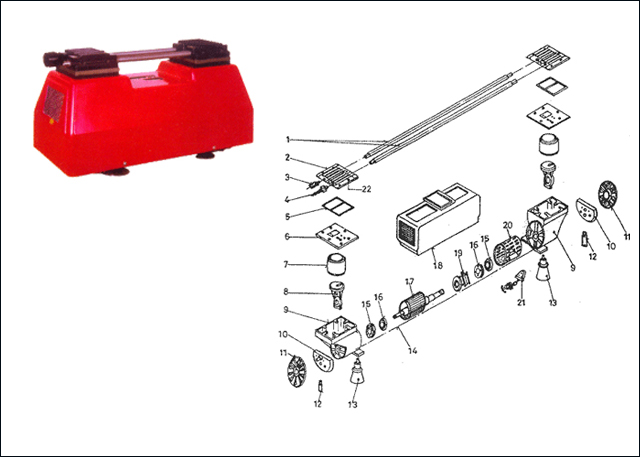

Piston Type Oil Free Compressors Cum Vacuum Pump Model HS - WP 02

PART NO. DESCRIPTION
201 PIPE
202 HEAD ASSLY
203 AIR SUCTION FILTER
204 DISCHARGE NOZZLE
205 O RING FOR HEAD
205A FLAPPER VALVE
205A VALVE PLATE O RING
206 VALVE PLATE ASSLY
207 PISTON SLEEVE
208A TEFLON RING
208 CONNECTING ROD ASSLY
209 MAIN BODY
210 ECCENTRIC CAM
211 FAN ASSLY
212 SUCTION CUP
213 STUD WITH HEX NUT
214 BALL BEARING
215 BEARING COVER
216 SHAFT, ROTOR, SWITCH
216A SHAFT FOR ROTOR
216B SHAFT FOR ROTOR WITH CLUTCH
217 FIBRE BODY
218 TERMINAL BOARD
219 SHELL WITH STATOR
219A STATOR REWINDING
220 MOULDED CORD WITH PLUG
221 HEAD SCREW
222 SHAFT FOR ROTOR
223 SHAFT FOR ROTOR WITH CLUTCH
224 STATOR REWINDING
225 CAPACITOR
