Piston Type Oil Free Compressors Cum Vacuum Pump Model HS - WP 03

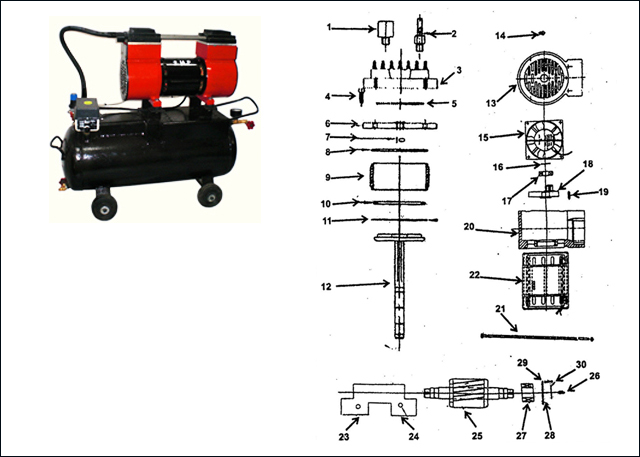

PART NO. DESCRIPTION
301 FILTER
302 HOSE CONNECTOR
303 HEAD
304 HEAD SCREW
305 GASKET ( O RING FOR HEAD)
306 VALVE PLATE
307 FLAPPER VALVE FOR VALVE PLATE
308 VALVE PLATE O RING
309 PISTON SLEEVE
310 M S RING
311 TEFLON RING
312 CONNECTING ROD
313 FRONT COVER
314 SCREW FOR FRONT COVER
315 FAN ASSLY
316 CIRCLIP FOR ROTOR SHAFT
317 BALL BEARING FOR CAM
318 ECCENTRIC CAM
319 GRUB SCREW FOR CAM
320 MAIN BODY
321 STUD FOR MAIN BODY
322 SHELL WITH STATOR
322A STATOR REWINDING
323 FIBRE COVER
324 SCREW FOR FIBRE COVER
325 SHAFT ROTOR ASSEMBLY
325A SHAFT FOR ROTOR
326 KEY FOR ROTOR
327 HOUSING BEARING
328 BEARING COVER
329 SCREW FOR BEARING COVER
330 CIRCLIP
