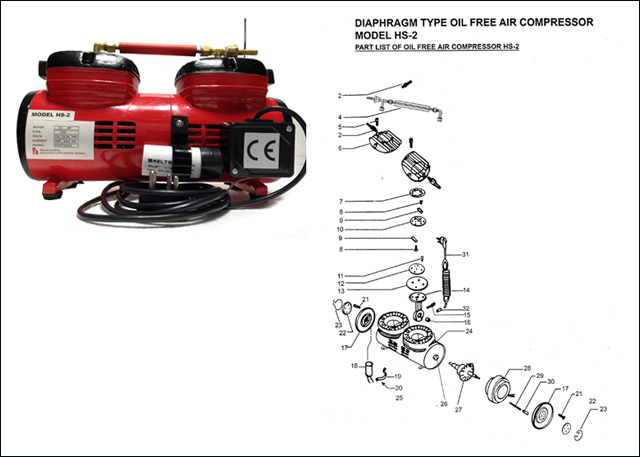

Oil Free Compressors Model HS-2

PART NO DESCRIPTION
202 NOZZLE
204 HANDLE
205 HEAD SCREW
206 HEAD
207 HEAD GASKET
208 FLAPPER VALVE SCREW
209 FLAPPER VALVE PLATE
210 EXHAUST VALVE PLATE
211 EXH & INT PLATE SCREW
212 INTAKE VALVE PLATE
213 DIAPHRAGM
214 CONNECTING ROD
215 CONNECTING ROD SCREW
216 CONNECTING ROD BEARING
217 FRONT COVER
218 CAPACITOR
219 CAPACITOR HOLDER
220 HOLDER SCREW
221 FRONT COVER SCREW
222 AIR FILTER
223 CIRCLIP
224 HOUSING
225 RUBBER MOUNTING
226 HOUSING BEARING
227 ROTOR, SHAFT & FAN ASSLY
228 STATOR
229 STUD
230 BUSH
231 MOULDED CORD WITH PLUG
232 MOULDED BASH
