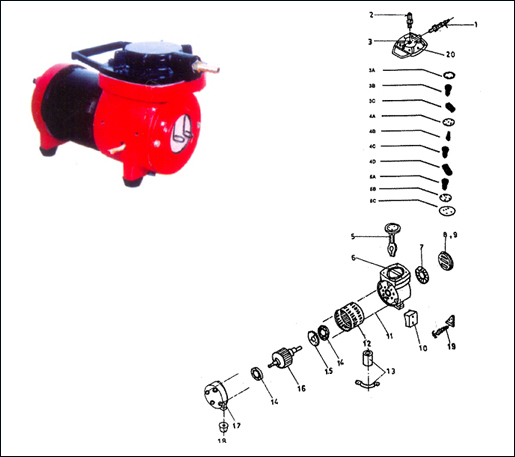

Oil Free Compressors Model HS-SD-1

PART NO. DESCRIPTION
1001 DISCHARGE NOZZLE
1002 HOSE CONNECTOR
1003 HEAD ASSEMBLY
1003A HEAD GASKET
1003C FLAPPER VALVE
1004A EXH VALVE PLATE COMPRESSOR

EXH VALVE PLATE VACUUM PUMP
1004B SCREW FOR ABOVE
1004D FLAPPER VALVE
1005A INTAKE PLATE SCREW
1005B INTAKE VALVE PLATE
1005C DIAPHRAGM
1005 CONNECTING ROD ASSLY
1005D CONNECTING ROD BEARING
1006 MAIN BODY
1007 FAN ASSMEBLY
1008 BEARING COVER
1010 TERMINAL BOX ASSLY
1011 STUD WITH HEX NUT
1012 SHELL WITH STATOR
1012A STATOR REWINDING
1013 CAPACITOR & HOLDER
1014 BALL BEARING
1015 BEARING COVER
1016 SHAFT WITH ROTOR
1017 FRONT COVER
1018 RUBBER MOUNTING
1019 MOULDED CORD WITH PLUG
1020 HEAD SCREW
