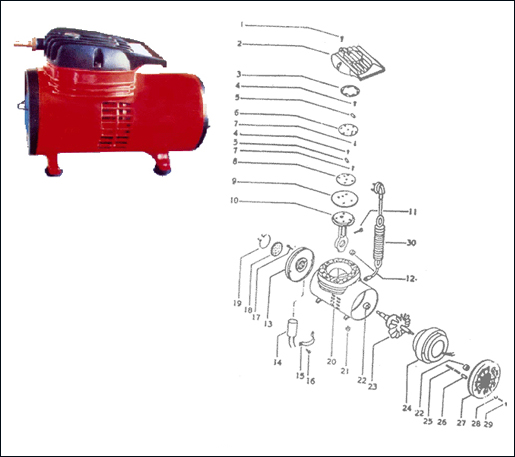

Oil Free Compressors Model HS 1

PART NO DESCRIPTION
101 HEAD SCREWS
102 HEAD
103 HEAD GASKET
105 FLAPPER VALVE
106 EXHAUST VALVE PLATE
107 EXH. & INT. PLATE SCREW
108 INTAKE VALVE PLATE
109 DIAPHRAGM
110 CONNECTING ROD
112 CONNECTING ROD BEARING
113 FRONT COVER
114 CAPACITOR
117 FRONT COVER SCREW
118 , 119 AIR FILTER / CIRCLIP
120 HOUSING
121 RUBBER MOUNTING
122 BEARING FOR HOUSING
123 SHAFT, ROTOR & FAN ASSLY
123A SHAFT FOR ROTOR
124 STATOR
124A STATOR REWINDING
125, 126 STATOR SCREW / CAP
127 MOTOR END COVER
129 SCREW FOR MOTOR END CAP
130 MOULDED CORD WITH PLUG
