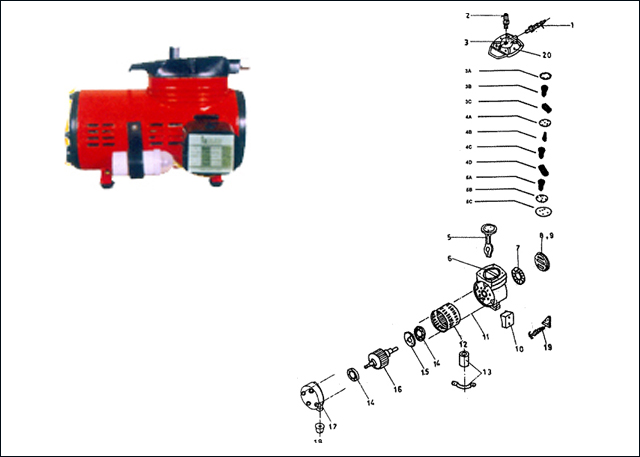

Oil Free Vaccum Pump HSV-1A

PART NO DESCRIPTION
101 HEAD SCREWS
102 HEAD
102A HEAD DULY TEFLON COATED
103 HEAD GASKET
105 FLAPPER VALVE
106 EXHAUST VALVE PLATE
107 EXH. & INT. PLATE SCREW
108 INTAKE VALVE PLATE
108A INTAKE VALVE PLATE DULY

TEFLON COATED
109 DIAPHRAGM NP
109A TEFLON DIAPHRAGM
110 CONNECTING ROD
112 CONNECTING ROD BEARING
113 FRONT COVER
114 CAPACITOR
117 NOZZLE 1/8 BSP
- AIR FILTER / CIRCLIP
118 HOUSING
119 TERMINAL BLOCK HSV-1A
120 BEARING FOR HOUSING
121 SHAFT, ROTOR & FAN ASSLY
121A SHAFT FOR ROTOR
122 STATOR
122A STATOR REWINDING
124, 125 STATOR SCREW / CAP
126 MOTOR END COVER
128 SCREW FOR MOTOR END CAP
129 MOULDED CORD WITH PLUG
130 PLASTIC COOLING FAN
