Oil Free Compressors / Vacuum Pump 3HP

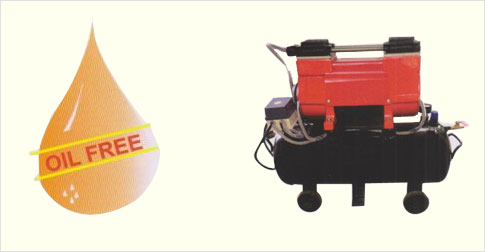

OIL FREE PISTON COMPRESSR HS-WP-IV



Technical Specifications :
Max. Air PRESSURE - 150 PSI (10.0 kg. /cm2)
Free Air Displacement 270 LPM (10.5 C.F.M.)
Electrical - 3 H.P.415 V-3 Ph - 50 Hz
RPM - 1440 AMP 3.5 KW - 1.65.

PERFORMANCE CHART :


COMPRESSOR PERFORMANCE
PSIG VS LPM
PSG
0
0
40
60
80
100
120
130
LPM 270 210 175 145 130 105 90 75







PHYSICAL DIMENSIONS OF COMPPRESSOR WITH 50 LTRS AIR RECEVER.

HEIGHT -28" WIDH-13" LENTH-34" WEIGHT-55 KGS















































Power 0.55 KW 3/4 HP
Cylender Stroke 13mm
Cylender Diameter 63.7 mm
Assemble Size 22.3 x 88.9 mm
External Size 260 (L)x100 (W) X 200 m (H)
Net Weight 9.5 kgs


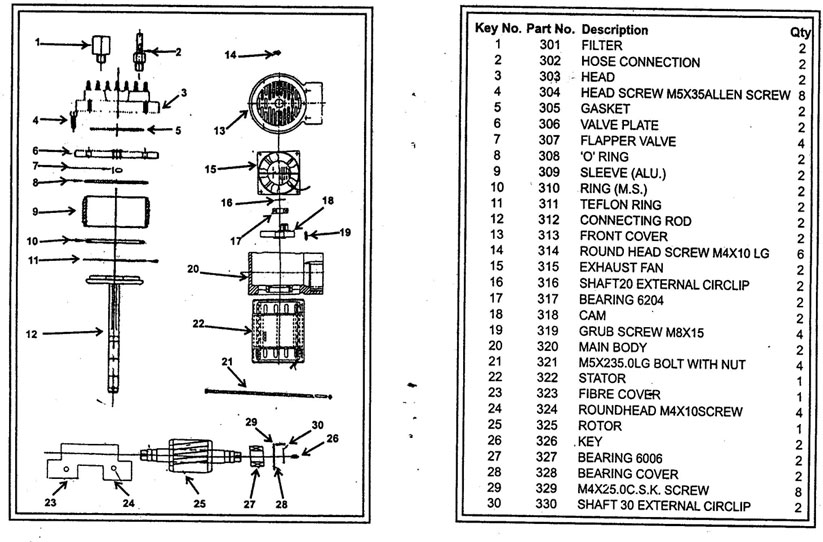

1 Cast Alu.Shell units
2 Eccentric Wheel units
3 fan
4 Screw of Connecting Rod
5 Connecting Rod
6 Piston Ring
7 Plate
8 Screw of plate
9 Cylender Jacket
10 Ghasket of Cylender Jacket
11 Plate Valve
12 Ghasket of Cylender Head
13 Screw of plate Valve
14 Fix Plate
15 Air Outlet Valve
16 Air inlet Valve
17 Valve Gasket
18 Screw Of valve
19 cylinder Head
20 Screw of cylinder Head
21 Connecting Pipe


SSPECIFICATIONS OF OIL FREE 3 HP PISTON VACUUM PUMP

MODEL TYPE MOTOR
H.P.
VOLT./
HERTZ
PHASE
VACUUM PERFORMANCE IN Hg. Vs. LPM MAX
VAC,
MM
Hg.
MAX
VAC,
INCH
Hg.
MAX
PRE
IN
PSIG
PHYSICAL
WT. Kg
SPECIFICATION
H" x W" x L"
        0 5 10 15 20 25
HS WP-4 PISTON VACUUM PUMP 3 415/50/3 245 215 185 145 105 50 660 MM Hg 26 " 200 35 12" x 9" x 18"
