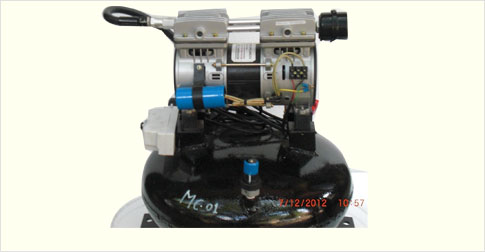

Oil Free Compressors 3 by 4 Hp Chinese Make

OIL FREE PISTON COMPRESSR HS-WP-IV













































Power 0.55 KW 3/4 HP
Cylender Stroke 13mm
Cylender Diameter 63.7 mm
Assemble Size 22.3 x 88.9 mm
External Size 260 (L)x100 (W) X 200 m (H)
Net Weight 9.5 kgs

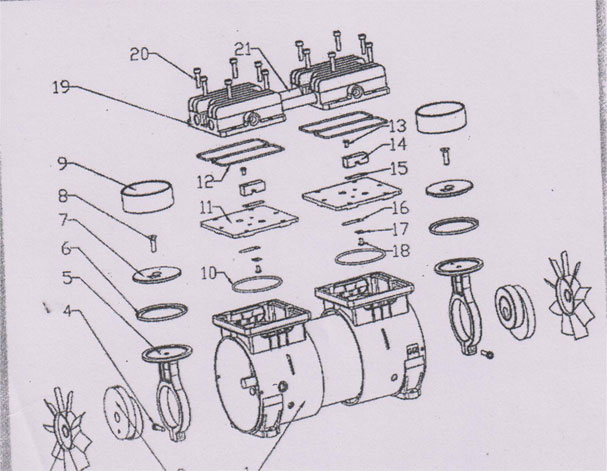

1 Cast Alu.Shell units
2 Eccentric Wheel units
3 fan
4 Screw of Connecting Rod
5 Connecting Rod
6 Piston Ring
7 Plate
8 Screw of plate
9 Cylender Jacket
10 Ghasket of Cylender Jacket
11 Plate Valve
12 Ghasket of Cylender Head
13 Screw of plate Valve
14 Fix Plate
15 Air Outlet Valve
16 Air inlet Valve
17 Valve Gasket
18 Screw Of valve
19 cylinder Head
20 Screw of cylinder Head
21 Connecting Pipe
