Oil Free Compressors / Vacuum Pump

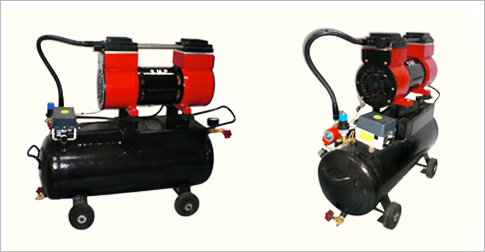

Oil Free Piston Compressor Model HS - WP III With 50 ltrs. Air Receiver

New oil free piston compressor from highspeed appliances leading manufactures of oil free piston & Diaphragm Compressor

Physical Dimensions of Compressor with 50 ltrs. air receiver :
Height - 28" Width - 13" Length - 34" Weight - 52 kgs.

Technical Specifications :
Max. Air PRESSURE - 130 PSI (9.0 kg. /cm2)
Free Air Displacement 230 LPM (9 C.F.M.)
Electrical - 2 H.P.415 V-3 Ph - 50 Hz
RPM - 1440 AMP 3.2 KW - 1.5.

PERFORMANCE CHART :


COMPRESSOR PERFORMANCE With 50 ltrs. Air Receiver MAX PRESSURE
PSIG VS LPM
PSIG









0 20 40 60 80 100 120 130
200 165 150 135 120 105 85 70 130 PSIG





COMPRESSOR PERFORMANCE With 50 ltrs. Air Receiver MAX PRESSURE
HG VS LPM
HG









0 5 10 15 20 25
200 190 160 120 70 25     26" HG ( 650 MM HG)







SPECIFICATIONS OF OIL FREE 2 HP PISTON VACUUM PUMP
MODEL TYPE MOTOR
H.P.
VOLT./
HERTZ
PHASE
VACUUM PERFORMANCE IN Hg. Vs. LPM MAX
VAC,
MM
Hg.
MAX
VAC,
INCH
Hg.
MAX
PRE
IN
PSIG
PHYSICAL
WT. Kg
SPECIFICATION
H" x W" x L"
        0 5 10 15 20 25
HS WP-3 PISTON VACUUM PUMP 2 415/50/3 220 190 160 120 70 25 660 MM Hg 26 " 200 30 12" x 9" x 18"
