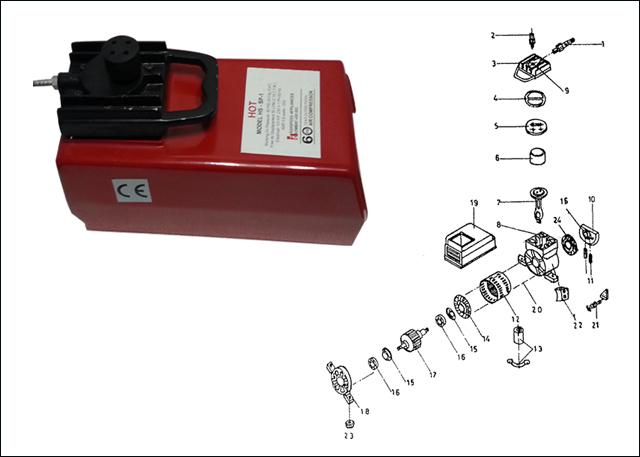

Piston Type Oil Free Compressor Cum Vacuum Pump Model : HS/ SP 01
PART NO. |
DESCRIPTION |
901 |
DISCHARGE NOZZLE |
903 |
HEAD ASSEMBLY |
904 |
HEAD GASKET O RING |
905 |
VALVE PLATE ASSEMBLY |
906 |
PISTON SLEEVE |
907 |
CONNECTING ROD ASSLY |
907A |
CONNECTING ROD BEARING |
908 |
MAIN BODY |
909 |
HEAD SCREW |
910 |
ECCENTRIC CAM |
912 |
SHELL WITH STATOR |
912A |
STATOR REWINDING |
913 |
CAPACITOR & HOLDER |
914 |
FAN ASSMEBLY |
915 |
BEARING COVER |
916 |
BALL BEARING |
917 |
SHAFT WITH ROTOR |
918 |
FRONT COVER |
919 |
FIBRE BODY |
920 |
STUD WITH HEX NUT |
921 |
MOULDED CORD WITH PLUG |
922 |
TERMINAL BOX ASSLY |
923 |
RUBBER MOUNTING |
924 |
COOLING FAN ASSLY |
